| SPECIFICATIONS |
PRODUCT
NAME / Model
|

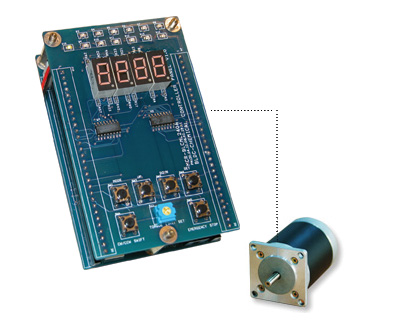

BLDC
MOTOR DRIVERS with Pannel／MCR-BLCML2406 |
POWER
INPUT
|
DC24V
+_20% or DC12V(Made by order) |
DRIVING
CURRENT
|
6A
(Max.) |
MOTOR
WATTS
|
＜200W
|
SPEED
CONTROL RANGE
|
50:1
|
OPERATION
FUNCTIONS
|
Customized
function designProgramming acceleration and deceleration
timeMotor Swift CW/ CCW On board DIP switch x4 ,16
function selectorOutput disableIn time speed displayAlarm
outputOverload detectionOverheat protection ≦70?CExternal
emergency stopExternal reset inputMaximum torque
output settingTorque output indicator CW/ CCW status
indicatorOut of service alarm… |
SPEED
SETTING
|
External
VR for speed control (20K Ohmic , 0 5V) |
| ACCELERATION
/ DECELERATION TIME |
Control
by program |
INPUT
SIGNAL
|
Run/Stop,
rotation direction, brake and ,reset all in automatic |
OPERATING
TEMP/ HUMIDITY
|
-40
C to +85 C |
| DIMENSIONS/
WEIGHT |
95(H)x60(W)x38(D)+-1
mm / 170g (case excluded ) |
| FEATURE: |
|
Wide
Speed Range and Constant Torque output panel display
Even
with an available speed range of 50~25000 rpm,
the motor maintains a constant torque. With panel
display the motor speed and torque output as led
indicator.Pioneer combine the driver and controller
with panel display function all in one. Panel
display can be selectable, such as the motor rotary
speed or other function as required.Combine two
piece top quality 4 layers in unique compact size
driver.Offer the automatic control technology
in total solution.Totally integrate drivers and
controller together in low cost for customers'
need.
- Flat
torque performance, cost effective, easy operation
- Low
noise. Motor keep low temperature after long
time operation
- Compact
size, high efficiency, long lifetime.
- Swift
CW/ CCW direction change.
- Customize
function designed. (Note 1)
|
Tc.
Mos Case Temperature( C)
Maximun
Drain Current Vs.Case Temperature on Power Mos.
|
- Please
read it thoroughly to ensure safe operation.
- Always
keep the manual where it is readily available.
- (Note
1):Customize automatic control by microcontroller,
programming from Microrad Technologies designed
as customers' requests in minimum purchase order.
|
- 4
digital speed display
4 digits,7-segment
display all the information as customers' need
- Button
touch control
MODE、UP、DOWN、SET、CW/CCW 、EMERGENCY STOP
- J7
Connector 【External speed adjustment VR, 3 Pin 】
1 ->
External speed control terminal (+V)
2 -> External speed control terminal（Wiper）
3 -> External speed control terminal (GND)
NOTE: Please use B20K VR ,Voltage adj. Range is DC0V~DC+5V。
-
R11 Peak Torque Setting VR
For
setting, press MODE and the display will show the
peak torque percentage .
- J8
Power Connector
1 ->
POWER INPUT DC +V (DC24V* DC12V is optional)
2 -> POWER INPUT DC 0V (GND)
- J11
Connector [ Motor, I/O signal connection, 8 Pin]
|
Pos.
|
Descriptions
|
Driver
|
Motor
|
|
1
|
Motor
U phase
|
(Blue) |
(Blue) |
|
2
|
Motor
V phase
|
(White)
|
(White) |
|
3
|
Motor
W phase
|
(Brown)
|
(Brown) |
|
4
|
Hall
Sensor Power H +
|
(Orange)
|
(Orange) |
|
5
|
Hall
Sensor Power H -
|
(Black)
|
(Black) |
|
6
|
Hall
Sensor, HU
|
(Yellow)
|
(Yellow) |
|
7
|
Hall
Sensor, HV
|
(Grey)
|
(Grey)
|
|
8
|
Hall
Sensor, HW |
(Green) |
(Green) |
- S17
On board DIP switch x4
On board DIP switch x4 ,16 function selector
| OPP/CPP
PACKING MACHINE: |
OPP/CPP
packing machine (semi-automatic) for DVD VCD CD
MCR-BLCML2406 fast deliver the film for the PP package
of DVD、VCD、CD at exact position. Simply setup the
speed and make the mechanical movement totally in
control. Even thought the mechanic devices in age,
MCR-BLCML2406 can detect the resistance and make
them performance in the highest efficiency. |
|
| BALL
SCREW & X-Y-Z TABLE: |
MCR-BLCML2406
can be combined for X-Y-Z movement.
Application：Centering a Substrate, Pulling out Connectors,
Driving a Pump Actuator Device, Fine Tuning A Nozzle,
Focusing a CCD Camera, Silicon Wafer Pin Lifter,
Pressing Applications , Wafer Transfer , Traveling
Operation , X-Y Table , X-Y Stage , Positioning
Application. |
|
| CHEMICAL
INDUSTRY: |
| MCR-BLCML2406
controls the brushless motor in constant speed unidirectional
or bidirectional, and instantaneous CW /CCW. Apply
in chemical, biochemical and medical devices for
laboratory. Easy fit it into the devices and the
devices will be more compact and easy to carry.
|
|
| FOOD
INDUSTRY: |
| MCR-BLCML2406
with hi-tech CPU make brushless motor rotation rate
up to 3000RPM or more that will be suitable application
in food industry. No matter with low speed torque
or instantaneous acceleration, MCR-BLCML2406 is
the one for the industry. Application：Material Agitator
, Arm Operation, Rotation of Camera, Operation of
Large Index Table, Positioning on Index Table, Load
Elevator, Open/Close Gate, Pushing Applications |
|
| HOME
APPLICATION |
| MCR-BLCML2406
combined with brushless motor rotation in low noise
applying to washing machine. Easy control the motor
rotate direction and speed in external D/A signal.
It also can apply to dryer machine and air condition.
This application will save our energy and do not
rise temperature through external voltage signal
input and motor control by driver's PWM. |
|
| CUTTING
MACHINES: |
| MCR-BLCML2406
combined with brushless motor could rotate instantaneous
acceleration or fast cutting applying to clothing
cutting machine. For the application MCR-BLCML2406
combine with controller will calculate the rotation
distant, clothing cutting and reposition automatically
by driver signal feedback. Combine with the function
of constant speed and torque compensation. It also
application on car waxing, low speed milling machine
or automatic tool. Easy installation, compact size
and easy operated. Application：Feeding Materials
, Feeding at Regular Intervals, Open-Close Gate,
Up and Down Operation, Printing Media , Cleaning
Applications, Picking Applications, Pumping Applications |
|
| TOOTHPASTE
/ COSMETIC TUBE SEALING REPOSITION MACHINE |
| MCR-BLCML2406
combined with brushless motor could apply in sealing
for tube , such as toothpaste, jam, cosmetic etc.
Mark searching, automatic filling, and quickly position
before tube sealing, MCR-BLCML2406 make these production
line to be simple. Combine with the photosensor
can quickly locate to mark within 0.7 sec per cycle,It
is maintain free and very stable in machine without
the shortage of stepper motor lost step status in
the procedure of acceleration. |
|
| MCR-BLCML2406
produce under our strict inspection and quality
control will be suitable operate with most of the
3 phase brushless motor. Free stop and instantaneous
rotation protection. The above 8 application for
all professional designer reference. Any question,
please do not be hesitate to contact with us. |
| |
| |
|
|
